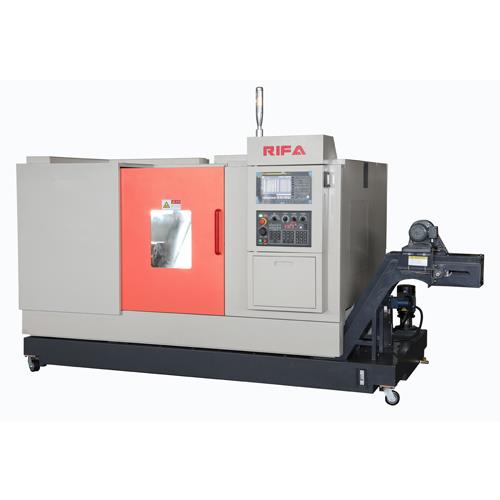

RFCZ20臥式數控車床RFCZ20Horizontal CNC lathe

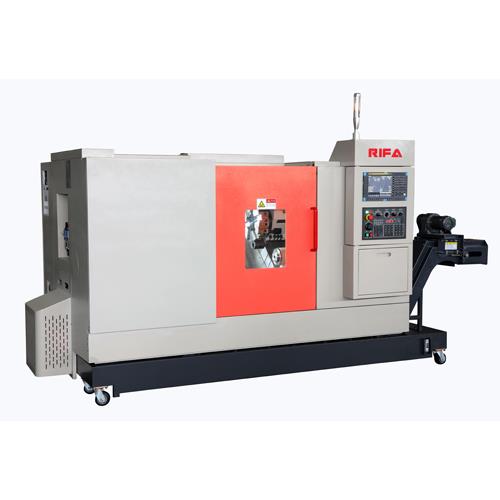

RFCZ20臥式數控車床RFCZ20Horizontal CNC lathe
RFCZ20臥式數控車床RFCZ20Horizontal CNC lathe
RFCZ20臥式數控車床RFCZ20Horizontal CNC lathe
臥式數控車床系列
RFCZ20臥式數控車床RFCZ20Horizontal CNC lathe
產品簡介
本系列產品是在消化、吸收國內外數控車床技術的基礎上開發成功的高檔數控車床產品,產品結構緊湊、造型美觀、功能豐富、配置完善、性能優良、質量可靠,具備高速度、高精度、高剛性、高效率的顯著優點。
This machine tool is suitable for machining rotary parts with complex shapes. It can be used for turning and milling cylindrical surfaces, curved surfaces, conical surfaces, stepped surfaces, spirals, etc. This product is widely used for parts processing in automobile and bearing industries.
結構特點
規格參數
  • 本系列產品是在消化、吸收國內外數控車床技術的基礎上開發成功的高檔數控車床產品,產品結構緊湊、造型美觀、功能豐富、配置完善、性能優良、質量可靠,具備高速度、高精度、高剛性、高效率的顯著優點。

    (1)機床采用整體式45°傾斜床身結構,經結構分析和優化設計,整體剛性好。整機采用全封閉防護,徹底杜絕漏 油、漏水現象?;厮酆突赜筒凼沟脻櫥?、冷卻液完全分離,符合高標準的環保要求。

    (2)高剛性主軸結構。精選國際著名品牌的高精度主軸軸承,采用國外最新主傳動結構形式,實現了高回轉精度, 高剛性、高主軸轉速。

    (3)X、Z兩軸導軌采用直線滾動導軌,帶有預加載荷,剛性好,沒有爬行現象,移動速度快。

    (4)Z軸絲杠采用雙支撐、軸向預拉伸結構,不僅提高了剛性,還抵消了熱變形對機床定位精度的影響。此外各軸均采用無間隙傳動結構。

    (5)本系列產品采用質量可靠、功能豐富的三菱50L數控系統,最小控制單位達到0.001mm,采用平穩的高增益控制,具備平穩的加減速特性。

    (6)機床所配置的各功能元件質量可靠,性能優良。其中,主軸軸承、滾動導軌、滾珠絲桿等核心零、部件采用等 國際一流品牌的產品

    (7)本系列產品采用了模塊化的設計方法,各規格產品配置齊全,功能完善,而且具有多種多樣的模塊組合方式滿 足用戶的不同需求。

    This series of products are high-end CNC lathe products successfully developed on the basis of digesting and absorbing domestic and foreign CNC lathe technology. The products have compact structure, beautiful appearance, rich functions, perfect configuration, excellent performance, reliable quality, and have the remarkable advantages of high speed, high precision, high rigidity and high efficiency.
    (1) The machine tool adopts an integral 45 ° inclined bed structure. After structural analysis and optimization design, the overall rigidity is good. The whole machine adopts fully enclosed protection to completely eliminate oil leakage and water leakage. The water return tank and oil return tank completely separate the lubricating oil and coolant, meeting the environmental protection requirements of high standards.
    (2) High rigidity spindle structure. The high-precision spindle bearings of international famous brands are selected, and the latest foreign main drive structure is adopted to achieve high rotation accuracy, high rigidity and high spindle speed.
    (3) The x-axis and z-axis guide rails adopt linear rolling guide rails with preload, which have good rigidity, no crawling phenomenon and fast moving speed.
    (4) The z-axis lead screw adopts double support and axial pre stretching structure, which not only improves the rigidity, but also offsets the influence of thermal deformation on the positioning accuracy of the machine tool. In addition, each shaft adopts a gapless transmission structure.
    (5) This series of products adopts Mitsubishi 50L CNC system with reliable quality and rich functions. The minimum control unit is 0.001mm. It adopts stable high gain control and has stable acceleration and deceleration characteristics.
    (6) The functional components configured by the machine tool are reliable in quality and excellent in performance. Among them, core parts and components such as spindle bearings, rolling guide rails, ball screws, etc. are products of world-class brands
    (7) This series of products adopts the modular design method, and the products of various specifications are equipped with complete functions, and have a variety of module combinations to meet the different needs of users.

  • 規格 RFCZ20
    床面旋徑Swing over bed
    mm
    Ф480
    最大切削直徑Max. machining dia.
    mm
    Ф260/Ф400
    床鞍上最大旋徑Swing over carriage
    mm
    Ф260
    橫向最大行程(X軸)Max. X-Axis travel
    mm
    210+10
    縱向最大行程(Z軸)Max. Z-Axis travel
    mm
    650
    最大加工長度Turning length
    mm
    630
    最大頂尖距離Max. center distance
    mm
    700
    快速進給Rapid feed rate
    m/min
    18/24
    主軸最高轉速Max. spindle speed
    r/min
    4000
    主軸軸徑Spindle bearing dia.
    mm
    Ф110
    主軸錐孔Spindle taper
    公制80Metric
    主軸頭部尺寸Spindle nose
    A6
    主軸孔徑Spindle through-hole
    mm
    Ф65
    液壓卡盤Hydraulic chuck
    8"
    刀具數目/動力刀具Tool number/Driven tool number
    12
    標準外徑刀尺寸Standard O.D. tool size
    mm
    25×25
    內徑刀尺寸(最大徑)ID tool size (Max.)
    mm
    Ф40
    液壓尾架套筒直徑 Hydraulic tail stock sleave dia.
    mm
    Ф90
    尾架套筒行程Tailstock stroke (Max.)
    mm
    100
    主軸電機功率Spindle motor
    Kw
    15/18.5
    伺服馬達(X軸/Z軸)Servo motor (X/Z-Axis)
    Kw
    3.0/3.0
    切削液容量Coolant capacity
    L
    120
    機械外形尺寸 Machine dimension
    mm
    3960×1620×1675
    機械重量Gross weight
    Kg
    4500
    定位精度/重復定位精度 X軸 Z軸 Positioning accuracy/repeatability
    mm
    0.008/0.004
    0.012/0.006
