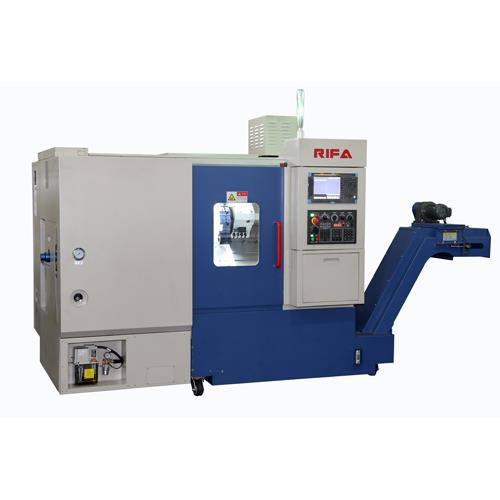

本系列產品是在消化、吸收國內外數控車床技術的基礎上開發成功的高檔數控車床產品,產品結構緊湊、造型美觀、功能豐富、配置完善、性能優良、質量可靠,具備高速度、高精度、高剛性、高效率的顯著優點。
(1)機床采用整體式45°傾斜床身結構,經結構分析和優化設計,整體剛性好。整機采用全封閉防護,徹底杜絕漏 油、漏水現象?;厮酆突赜筒凼沟脻櫥?、冷卻液完全分離,符合高標準的環保要求。
(2)高剛性主軸結構。精選國際著名品牌的高精度主軸軸承,采用國外最新主傳動結構形式,實現了高回轉精度, 高剛性、高主軸轉速。
(3)X、Z兩軸導軌采用直線滾動導軌,帶有預加載荷,剛性好,沒有爬行現象,移動速度快。
(4)Z軸絲杠采用雙支撐、軸向預拉伸結構,不僅提高了剛性,還抵消了熱變形對機床定位精度的影響。此外各軸均采用無間隙傳動結構。
(5)本系列產品采用質量可靠、功能豐富的FANUC數控系統,最小控制單位達到0.001mm,采用平穩的高增益控制,具備平穩的加減速特性。
(6)機床所配置的各功能元件質量可靠,性能優良。其中,主軸軸承、滾動導軌、滾珠絲桿等核心零、部件采用等 國際一流品牌的產品
(7)本系列產品采用了模塊化的設計方法,各規格產品配置齊全,功能完善,而且具有多種多樣的模塊組合方式滿 足用戶的不同需求。
1. This machine tool is suitable for machining rotary parts with complex shapes. It can be used for turning and milling cylindrical surfaces, curved surfaces, conical surfaces, stepped surfaces, spirals, etc. This product is widely used for parts processing in automobile and bearing industries.
2. The spindle adopts electric spindle, with high speed, large torque and high stability.
3. The machine tool adopts self-made servo cutter table, which improves the machining efficiency.
4. The machine tool can be combined with truss manipulator, loading and unloading machine, workpiece turnover device, detection device, etc. to form a flexible production line, so as to realize the automatic processing of parts and save labor costs.
