公司業務

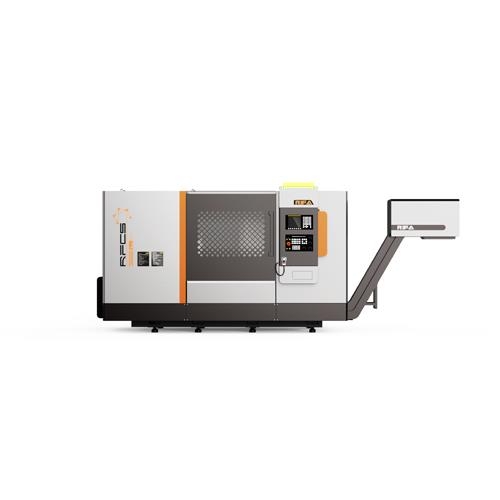

RFCS26臥式數控車床RFCS26 Horizontal CNC lathe
RFCS26臥式數控車床RFCS26 Horizontal CNC lathe
臥式數控車床系列
RFCS26臥式數控車床RFCS26 Horizontal CNC lathe
產品簡介
該機床適合加工形狀復雜的回轉類零件,能進行柱面、曲面、錐面、階梯面、螺旋等的車、銑加工,本產品廣泛應用于汽車和軸承行業的零件加工。
This machine tool is suitable for machining rotary parts with complex shapes. It can be used for turning and milling cylindrical surfaces, curved surfaces, conical surfaces, stepped surfaces, spirals, etc. This product is widely used for parts processing in automobile and bearing industries.
結構特點
規格參數
  • 1、該機床適合加工形狀復雜的回轉類零件,能進行柱面、曲面、錐面、階梯面、螺旋等的車、銑加工,本產品廣泛應用于汽車和軸承行業的零件加工。
    2
    、主軸采用電主軸,轉速高,扭矩大,穩定性高。
    3
    、該機床采用自制伺服刀臺,提高了加工效率。

    4、該機床可與桁架機械手、上下料機、工件翻轉裝置、檢測裝置等組合成一條柔性化生產線,實現零件自動化加工,節約勞動力成本。

    1. This machine tool is suitable for machining rotary parts with complex shapes. It can be used for turning and milling cylindrical surfaces, curved surfaces, conical surfaces, stepped surfaces, spirals, etc. This product is widely used for parts processing in automobile and bearing industries.

    2. The spindle adopts electric spindle, with high speed, large torque and high stability.

    3. The machine tool adopts self-made servo cutter table, which improves the machining efficiency.

    4. The machine tool can be combined with truss manipulator, loading and unloading machine, workpiece turnover device, detection device, etc. to form a flexible production line, so as to realize the automatic processing of parts and save labor costs.



  • 規格 RFCS26
    加工范圍working range
    床身上最大回轉直徑Swing over bed
    床鞍上最大回轉直徑Swing over carriage
    最大車削直徑Max turning diameter
    最大車削長度Max turning length
    縱向最大行程(Z軸)Z axis travel
    橫向最大行程(X軸)X axis travel
    ф550mm
    ф300mm
    ф400mm
    370mm
    400mm
    210+5mm
    主軸spindle
    主軸最高轉速Max spindle speed
    主軸錐孔Spindle taper
    主軸功率Spindle power
    主軸頭部Spindle head
    主軸通孔直徑Spindle through hole
    5000rpm
    莫式6號
    11/15kw
    A2-6
    ф65mm
    電主軸
    進給系統Feeding system
    快移速度Rapid feed (X,Z axis)
    伺服電機Servo motor (X,Z axis)
    X:36m/min,Z:36m/min
    X軸:12N.M Z軸:12N.M
    刀臺Turret
    刀位數量Number of tool positions
    標準外徑刀尺寸Standard OD tool size
    內徑刀尺寸ID tool size
    刀臺重復定位精度 Repeat positioning accuracy
    相臨刀位換刀時間Tool exchange time
    8把
    25X25mm
    ф40mm
    ±0.5〞
    0.15秒
    伺服
    卡盤、油缸Chuck, oil cylinder
    8 〞
    排屑系統Chip removal system
    防護系統Protective system
    鏈板排屑器+切屑車Chain type chip conveyor + chip cart
    全封閉大防護罩Full cover
    液壓潤滑系統
    液壓系統Hydraulic system
    潤滑系統
    lubrication system
    P=3.5Mpa,Q=30L/min
    定時定量潤滑automatic
    精度
    定位精度 Positioning accuracy X / Z
    重復定位精度Repeat positioning accuracy X / Z
    X:0.008mm Z:0.008mm
    X:0.003mm Z:0.003mm
    機床外型尺寸(長X寬X高)Overall dimension of machine tool (length x width x height)
    2300x3100x1950mm
    機床重量Machine weight
    4500kg
    數控系統 control system
    FANUC/SIEMENS
